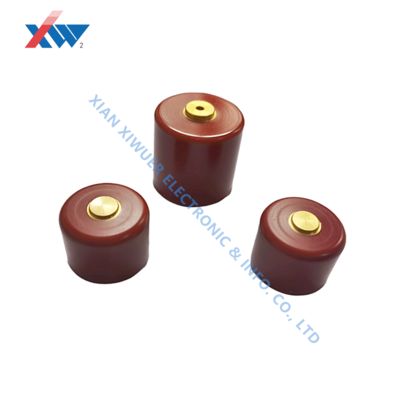

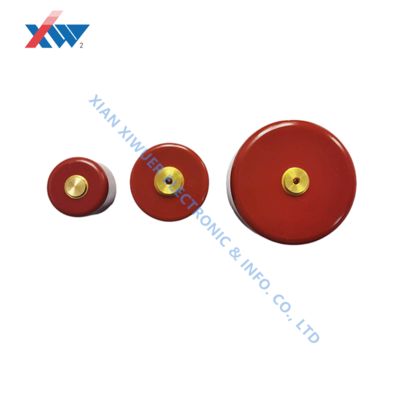

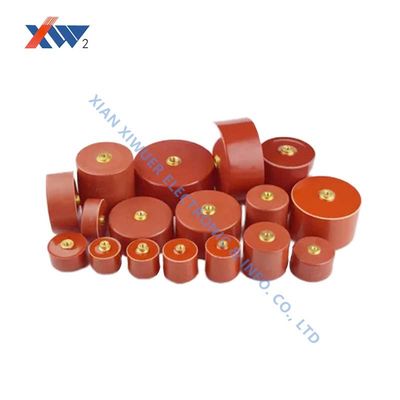

Customized High Voltage Doorknob Capacitor for Non-destructive Testing with Extreme Space Requirements and Functional Integration
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 강조하다 | Non-destructive Testing High Voltage Doorknob Capacitor,Extreme Space Requirements HV Doorknob Capacitor,Functional Integration Custom High Voltage Capacitor |
||
|---|---|---|---|
제품 설명
Custom High-Voltage Capacitor Solutions for Nondestructive Testing
Specialized high-voltage capacitor solutions designed for unique nondestructive testing applications where standard components may not meet requirements.
Standard Product Specifications
| No. | Specification | Dissipation | Withstanding Voltage | Insulation Resistance | Dimensions (mm) |
|---|---|---|---|---|---|
| 1 | 20kV-2000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 2 | 20kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:65 | H:15 | L:19 | D:12 | M:5 |
| 3 | 20kV-18000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:17 | L:25 | D:12 | M:5 |
| 4 | 30kV-1000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:24 | L:32 | D:12 | M:4 |
| 5 | 30kV-2700pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:60 | H:20 | L:28 | D:12 | M:4 |
| 6 | 30kV-12000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 7 | 40kV-150pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:74 | H:18 | L:26 | D:12 | M:5 |
| 8 | 40kV-500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:28 | H:33 | L:41 | D:8 | M:4 |
| 9 | 40kV-7500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:24 | L:29 | D:12 | M:6 |
| 10 | 40kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:22 | L:26 | D:16 | M:5 |
When Standard Products Aren't Enough
Cutting-edge nondestructive testing equipment often requires solutions beyond standard offerings, particularly for:
- Exceptionally high voltages (>300kV)
- Extremely limited installation space
- Complex multi-stage capacitor voltage divider networks
Customization Capabilities
Our engineering team and flexible production lines provide comprehensive customization services from concept to finished product:
Electrical Parameter Customization
- Voltage Customization: Rated voltages from several kilovolts to 500kV+
- Capacitance Customization: Precise tailoring for filtering or energy storage requirements
- Low Inductance Design: Optimized internal structure for high-frequency pulse applications
Physical Structure Customization
- Dimensions & Mounting: Custom shapes, lengths, and terminal configurations
- Encapsulation Hardening: Specialized packaging for extreme environments (high altitude, humidity)
System-Level Solutions
- Capacitor Voltage Divider Modules: High-precision, high-stability voltage dividers
- Pre-Assembled Capacitor Stacks: Plug-and-play multi-capacitor series/parallel configurations
We believe the best capacitor is one that integrates seamlessly into your system design. Contact us to develop the perfect component for your unique nondestructive testing application.
