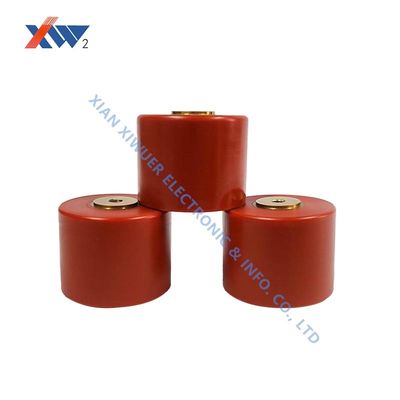

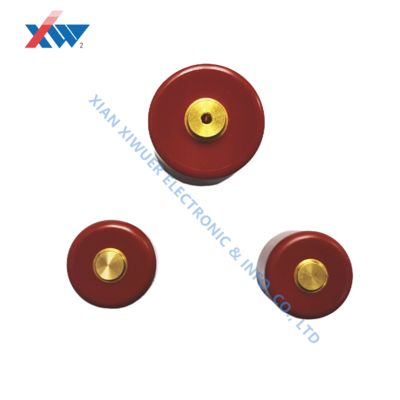

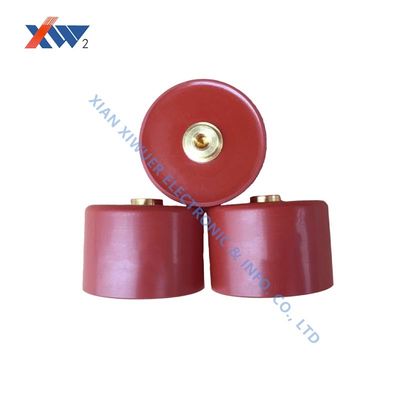

High Voltage Doorknob Capacitor for Non-Destructive Testing with Extreme Space Requirements and Functional Integration
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 강조하다 | Non-Destructive Testing High Voltage Doorknob Capacitor,Extreme Space Requirements HV Ceramic Capacitor,Functional Integration High Voltage Doorhandle Capacitor |
||
|---|---|---|---|
제품 설명
High-Voltage Doorhandle Capacitors for Nondestructive Testing Equipment
Technical Specifications
| No. | Specification | Dissipation | Withstanding Voltage | Insulation Resistance | Dimensions (mm) |
|---|---|---|---|---|---|
| 1 | 20kV-2000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 2 | 20kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:65 | H:15 | L:19 | D:12 | M:5 |
| 3 | 20kV-18000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:17 | L:25 | D:12 | M:5 |
| 4 | 30kV-1000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:24 | L:32 | D:12 | M:4 |
| 5 | 30kV-2700pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:60 | H:20 | L:28 | D:12 | M:4 |
| 6 | 30kV-12000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 7 | 40kV-150pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:74 | H:18 | L:26 | D:12 | M:5 |
| 8 | 40kV-500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:28 | H:33 | L:41 | D:8 | M:4 |
| 9 | 40kV-7500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:24 | L:29 | D:12 | M:6 |
| 10 | 40kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:22 | L:26 | D:16 | M:5 |
Total Cost of Ownership Advantage
In industrial equipment markets, purchasing decisions now consider total cost of ownership rather than just initial costs. For high-value nondestructive testing equipment, our high-voltage doorhandle capacitors deliver value far beyond unit price.
Cost Comparison
Visible Costs (Initial):
- Capacitor unit price
Invisible Costs (Long-Term Risk):
- Equipment downtime losses due to early capacitor failure
- Labor and travel costs for on-site repairs
- Brand reputation loss and potential compensation due to inaccurate test results
- Additional electricity costs due to inefficient capacitors
Strategic Value Proposition
Our high-quality capacitors represent a strategic investment in your equipment's long-term profitability and brand reputation:
- Maximized Equipment Uptime: Extremely low failure rates increase equipment availability and strengthen your reputation
- Consistent Test Accuracy: Excellent long-term stability ensures performance throughout the equipment lifecycle
- Energy Efficiency: Low dissipation factor reduces energy waste, supporting sustainability goals
- Supply Chain Simplicity: Stable product quality reduces inspection needs and production risks
Case Study: Aerospace NDT Equipment Manufacturer
A leading manufacturer implemented our high-voltage doorhandle capacitors in their composite material testing equipment, achieving:
- 70% reduction in three-year equipment return rate
- Industry benchmark test result reproducibility recognized by major aircraft manufacturers
- Over 40% reduction in lifecycle maintenance costs
Despite a 15% higher initial cost per capacitor, the total cost savings and performance benefits were substantial.
We provide more than capacitors - we deliver reliability guarantees that differentiate your equipment in the market and build long-term competitive advantage.
