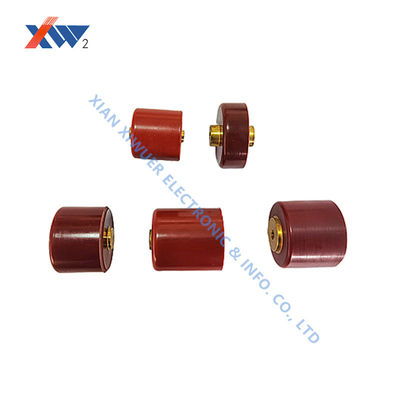

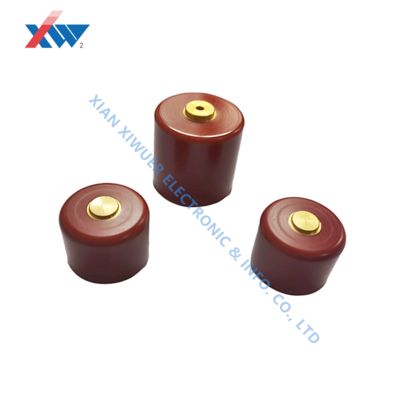

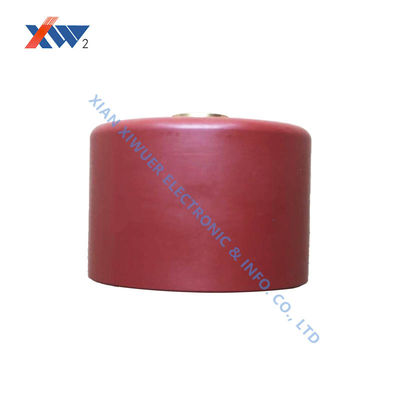

High-voltage doorknob capacitor with 60,000-hour design life featuring anti-aging ceramic dielectric and low-loss technology for industrial microwave heating
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 강조하다 | 60,000-hour design life high-voltage doorknob capacitor,Anti-aging ceramic dielectric HV ceramic capacitor |
||
|---|---|---|---|
제품 설명
High-Voltage Door Handle Capacitor for Industrial Microwave Heating Equipment
Technical Specifications
The cornerstone of 24/7 continuous operation in industrial microwave heating systems, our high-voltage door-handle capacitors deliver unmatched reliability for critical applications including ceramic sintering, powder metallurgy, and chemical material processing.
| No. | Specification | Dissipation | Withstanding Voltage | Insulation Resistance | Dimensions (mm) |
|---|---|---|---|---|---|
| 1 | 20kV-2000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 2 | 20kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:65 | H:15 | L:19 | D:12 | M:5 |
| 3 | 20kV-18000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:17 | L:25 | D:12 | M:5 |
| 4 | 30kV-1000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:24 | L:32 | D:12 | M:4 |
| 5 | 30kV-2700pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:60 | H:20 | L:28 | D:12 | M:4 |
| 6 | 30kV-12000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 7 | 40kV-150pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:74 | H:18 | L:26 | D:12 | M:5 |
| 8 | 40kV-500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:28 | H:33 | L:41 | D:8 | M:4 |
| 9 | 40kV-7500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:24 | L:29 | D:12 | M:6 |
| 10 | 40kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:22 | L:26 | D:16 | M:5 |
The cornerstone of 24/7 continuous operation in industrial microwave heating systems, our high-voltage door-handle capacitors deliver unmatched reliability for critical applications including ceramic sintering, powder metallurgy, and chemical material processing.
Continuous Operation Demands
Industrial microwave equipment requires components that withstand extreme conditions:
- Continuous high-voltage stress near rated values
- Significant ripple current causing continuous heating
- High-temperature environments from magnetron and transformer heat
Engineered for Longevity
Our comprehensive material and process optimizations ensure exceptional performance:
- Anti-Aging Ceramic Dielectric: Specially stabilized materials maintain stable capacitance values under high electric fields
- Low-Loss Technology: Optimized electrodes and sintering processes minimize self-heating
- Enhanced Heat Dissipation: Metal casing acts as efficient heat sink with thermal simulation-optimized design
Verified Reliability
We guarantee a design life exceeding 60,000 hours at maximum operating temperature and rated voltage, with reliability data backed by accelerated life testing.
Choosing our high-voltage door-handle capacitors ensures predictable, long-term stable operation for your industrial microwave equipment, keeping your production line running without interruption.
