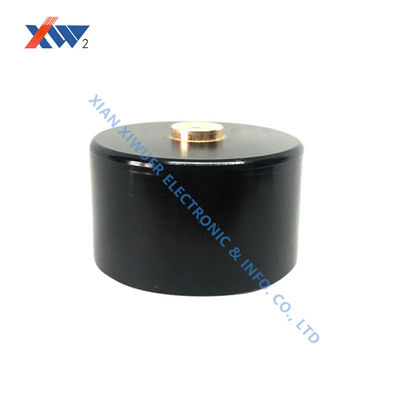

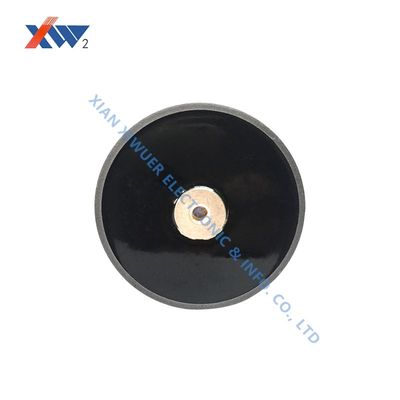

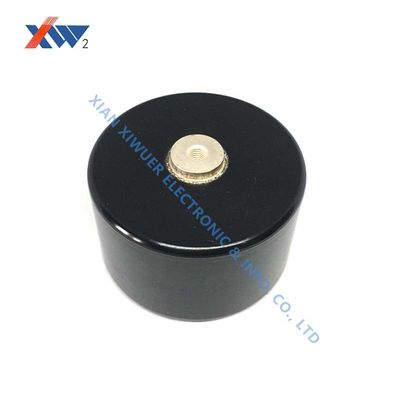

High Voltage Doorknob Capacitor for Material Handling Equipment with Long-Term Stability and Energy Efficiency
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 강조하다 | Material Handling Equipment High Voltage Doorknob Capacitor,Long-Term Stability HV Doorknob Capacitor,Energy Efficiency Ceramic Doorknob Capacitor |
||
|---|---|---|---|
제품 설명
High Voltage Doorknob Capacitors for Material Handling Equipment
Technical Specifications
| No. | Specification | Dissipation | Withstanding Voltage | Insulation Resistance | Dimensions (mm) |
|---|---|---|---|---|---|
| 1 | 20kV-2000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 2 | 20kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:65 | H:15 | L:19 | D:12 | M:5 |
| 3 | 20kV-18000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:17 | L:25 | D:12 | M:5 |
| 4 | 30kV-1000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:24 | L:32 | D:12 | M:4 |
| 5 | 30kV-2700pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:60 | H:20 | L:28 | D:12 | M:4 |
| 6 | 30kV-12000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:45 | H:19 | L:23 | D:12 | M:5 |
| 7 | 40kV-150pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:74 | H:18 | L:26 | D:12 | M:5 |
| 8 | 40kV-500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:28 | H:33 | L:41 | D:8 | M:4 |
| 9 | 40kV-7500pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:24 | L:29 | D:12 | M:6 |
| 10 | 40kV-10000pF | ≤0.0040 | 1.5Ur● 1min | ≥1.0 x 105MΩ | D:80 | H:22 | L:26 | D:16 | M:5 |
Total Cost of Ownership Analysis
For material handling equipment manufacturers, competitive advantage lies in long-term operational stability, energy efficiency, and maintenance costs - not just initial performance. Our high-voltage doorknob capacitors deliver value through their entire lifecycle.
Hidden Costs of Inferior Capacitors
- Production losses from premature capacitor failure and batch scrapping
- Unplanned downtime penalties and lost production capacity
- Emergency repair costs and associated brand damage
- Increased energy consumption from capacitor performance degradation
Our Value Proposition
Investing in our high-quality capacitors is a strategic decision that enhances your equipment's market competitiveness and profitability:
- Process consistency: Maintains stable performance for consistent product quality
- Maximized uptime: High reliability reduces failures and maintenance costs
- Energy efficiency: Low dissipation factor minimizes operating costs
- Supply chain stability: Consistent quality and guaranteed availability
Case Study: Optical Coating Equipment Manufacturer
A LiDAR filter coating manufacturer achieved remarkable results with our customized capacitors:
- 90% reduction in annual equipment failure rate
- Consistent coating yield exceeding 99.5%
- 30% increase in equipment value over three years
We provide more than components - we deliver reliability guarantees and become your trusted partner in enhancing equipment performance and value.
