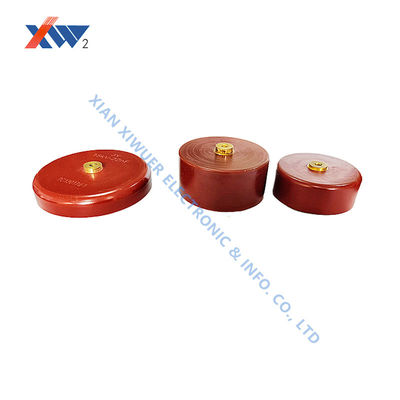

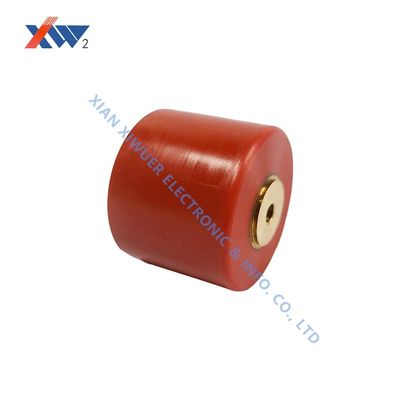

High Voltage Ceramic Doorknob Capacitor for Precise Signal and Clear Communication in Power Line Carrier Systems
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 산재 | ≦0.0040 | 내 전압 | 1.5UR ● 1 분 |
|---|---|---|---|
| 절연 저항 | 1.0 × 105mΩ | ||
| 강조하다 | Precise Signal High Voltage Ceramic Capacitor,Clear Communication Doorknob Capacitor,Power Line Carrier Communication HV Ceramic Capacitor |
||
제품 설명
High-Voltage Door Handle Capacitors for Power Line Carrier Communication
Precise signal, clear communication: High-voltage door handle capacitors enable power line carrier communication coupling devices.
Technical Specifications
| No. | Specification | Dissipation | Withstanding voltage | Insulation resistance | Dimension(mm) | ||||
| 1 | 20kV-2000pF |
≦0.0040 |
1.5Ur● 1min |
≧1.0×105MΩ |
D | H | L | D | M |
| 2 | 20kV-10000pF | 45 | 19 | 23 | 12 | 5 | |||
| 3 | 20kV-18000pF | 65 | 15 | 19 | 12 | 5 | |||
| 4 | 30kV-1000pF | 80 | 17 | 25 | 12 | 5 | |||
| 5 | 30kV-2700pF | 45 | 24 | 32 | 12 | 4 | |||
| 6 | 30kV-12000pF | 60 | 20 | 28 | 12 | 4 | |||
| 7 | 40kV-150pF | 20 | 33 | 41 | 8 | 4 | |||
| 8 | 40kV-500pF | 28 | 33 | 41 | 8 | 4 | |||
| 9 | 40kV-7500pF | 80 | 24 | 29 | 12 | 6 | |||
| 10 | 40kV-10000pF | 80 | 22 | 26 | 16 | 5 | |||
| 11 | 50kV-1000pF | 50 | 30 | 34 | 12 | 4 | |||
| 12 | 50kV-1000pF | 32 | 27 | 31 | 16 | 5 | |||
| 13 | 50kV-5600pF | 80 | 31 | 35 | 16 | 5 | |||
| 14 | 60kV-1500pF | 50 | 31 | 34 | 12 | 5 | |||
| 15 | 60kV-3000pF | 65 | 32 | 35 | 16 | 5 | |||
| 16 | 100kV-500pF | 50 | 54 | 58 | 12 | 5 | |||
| 17 | 100kV-2000pF | 51 | 32 | 35 | 16 | 5 | |||
| 18 | Insulator type 100kV-1500pF | 68 | 36 | 40 | 16 | 5 | |||
| 19 | 150kV-820pF | 65 | 95 | 100 | 12 | 5 | |||
| 20 | 200kV-600pF | 50 | 90 | 94 | 16 | 5 | |||
In power line carrier communication systems, efficient and low-distortion coupling of high-frequency communication signals onto high-voltage power lines without interfering with industrial frequency power transmission is crucial to communication quality. The combined filter and coupling capacitors in the power line carrier coupling device together form the "signal gateway" for this process. The high-voltage doorknob capacitor is the core component responsible for energy exchange and frequency selection within this gateway.
Key Challenges: Impedance Matching and Nonlinear Distortion
In a coupling device, filters must perform two major functions:
- Impedance Conversion: Matching the high impedance of the power line (approximately 300-400Ω) with the low impedance of the communication cable.
- Capacitive Reactance Compensation and Filtering: Compensating for the capacitive reactance of the coupling capacitor and working with it to form a bandpass or high-pass filter circuit, allowing only signals in a specific frequency band to pass and suppressing out-of-band noise.
Poor capacitor performance, such as unstable capacitance or excessive internal losses, can lead to:
- Impedance mismatch, causing signal reflections and increased transmission attenuation.
- Nonlinear distortion, generating harmonics, disrupting signal integrity, and reducing the communication signal-to-noise ratio.
