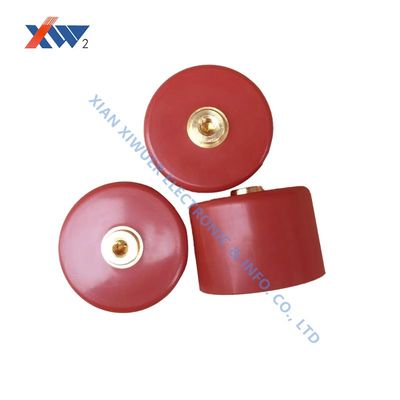

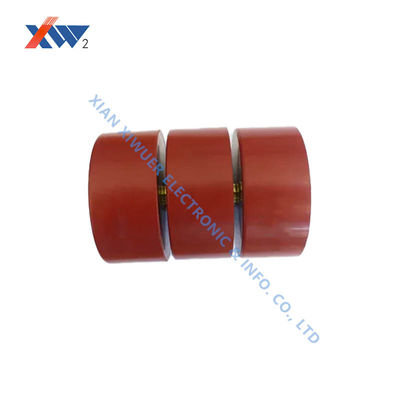

Experts In Non-standard Coupling Scenarios: Customized Capacitor Solutions For Your Special High-voltage Coupling Needs
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 산재 | ≦0.0040 | 내 전압 | 1.5UR ● 1 분 |
|---|---|---|---|
| 절연 저항 | 1.0 × 105mΩ | ||
| 강조하다 | custom high voltage doorknob capacitors,non-standard coupling capacitor solutions,specialized high-voltage coupling capacitors |
||
필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
제품 설명
Experts in non-standard coupling scenarios: Customized capacitor solutions for your special high-voltage coupling needs
Drawing:
Parameters:
| No. | Specification | Dissipation | Withstanding voltage | Insulation resistance | Dimension(mm) | ||||
| 1 | 20kV-2000pF |
≦0.0040 |
1.5Ur● 1min |
≧1.0×105MΩ |
D | H | L | D | M |
| 2 | 20kV-10000pF | 45 | 19 | 23 | 12 | 5 | |||
| 3 | 20kV-18000pF | 65 | 15 | 19 | 12 | 5 | |||
| 4 | 30kV-1000pF | 80 | 17 | 25 | 12 | 5 | |||
| 5 | 30kV-2700pF | 45 | 24 | 32 | 12 | 4 | |||
| 6 | 30kV-12000pF | 60 | 20 | 28 | 12 | 4 | |||
| 7 | 40kV-150pF | 20 | 33 | 41 | 8 | 4 | |||
| 8 | 40kV-500pF | 28 | 33 | 41 | 8 | 4 | |||
| 9 | 40kV-7500pF | 80 | 24 | 29 | 12 | 6 | |||
| 10 | 40kV-10000pF | 80 | 22 | 26 | 16 | 5 | |||
| 11 | 50kV-1000pF | 50 | 30 | 34 | 12 | 4 | |||
| 12 | 50kV-1000pF | 32 | 27 | 31 | 16 | 5 | |||
| 13 | 50kV-5600pF | 80 | 31 | 35 | 16 | 5 | |||
| 14 | 60kV-1500pF | 50 | 31 | 34 | 12 | 5 | |||
| 15 | 60kV-3000pF | 65 | 32 | 35 | 16 | 5 | |||
| 16 | 100kV-500pF | 50 | 54 | 58 | 12 | 5 | |||
| 17 | 100kV-2000pF | 51 | 32 | 35 | 16 | 5 | |||
| 18 | Insulator type 100kV-1500pF | 68 | 36 | 40 | 16 | 5 | |||
| 19 | 150kV-820pF | 65 | 95 | 100 | 12 | 5 | |||
| 20 | 200kV-600pF | 50 | 90 | 94 | 16 | 5 | |||
While standard coupling device designs can meet most applications, cutting-edge scientific research projects or special industrial applications (such as high-voltage SiC device drive power extraction, signal extraction in specific frequency bands, and monitoring in extreme environments) often come with unique requirements. These may include non-standard voltage/capacitance combinations, extremely low coupling capacitance values to suppress common-mode interference, or use in strong magnetic fields or high vacuum environments. In these scenarios, a standardized doorknob capacitor may not perfectly meet all requirements.
Challenges of Special Coupling Applications
Special Voltage and Capacitance Requirements: For example, to reduce common-mode interference in high-voltage SiC device-driven energy harvesting devices, coupling capacitance values must be optimized to the picofarad (pF) level (e.g., 0.74pF), requiring specialized structures and processes.
Extreme Frequency Response Requirements: Certain applications may require capacitors with ESR and ESL below the lower limits of existing standards to achieve wider bandwidths or faster pulse response.
Physical Space Constraints and Environmental Compatibility: Integration into compact equipment cavities or meeting specialized environments such as non-magnetic and ultra-high vacuum compatibility requires specialized designs for capacitor form factors, materials, and processes.
