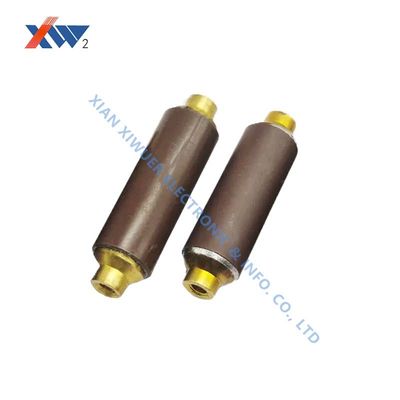

27KV 38PF Ceramic Live Line Capacitor for Medium Voltage Live-Line Indication and Capacitive Voltage Dividers
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Nominal Capacitance Range | 35 ~42 | Application | used as sensor unit of electrified display device below 35KV |
|---|---|---|---|
| 강조하다 | Ceramic Live Line Capacitor,Medium Voltage Live-Line Indication Capacitor,Capacitive Voltage Dividers Capacitor |
||
제품 설명
27KV 38PF Live Line Capacitors Hv Ceramic 3.6KV-40.5KV XIWUER
27KV 38PF Voltage Indicator High Voltage Ceramic Capacitor 3.6KV-40.5KV
Applications
- Medium Voltage live-line indication
- Re-routing of systems in the event of inadvertent disconnection
- Capacitive voltage dividers for MV voltage measurement
| Voltage | Nominal Capacitance (pF) | Nominal Capacitance Range Test Frequency:1kHz±20% Test Voltage:1V±0.2V |
Power Frequency Withstand Voltage (in the insulation oil) |
Partial Discharge | Lightning Impulse (kV) (Maximum Peak Voltage) (in the insulation oil) |
|---|---|---|---|---|---|
| 27kVAC | 38 | 37~41pF | 70kVAc/5min | 26.4kVac≤10PC | 125 |
Notes
- Terminals are soldered to the ceramic parts with 221° melting point solder.
- Capacitors of this type have been used in transformer oil and in SF6 gas. In these cases we would recommend a paint coating on the otherwise bare ceramic surface.
- Components are lead(Pb) free and RoHS compliant.
