FD2/FD10 255VAC Surge Protective Device with 20kA Rated and 40kA Maximum Inrush Current for N-PE Protection
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Maximum continuous operating voltage Uc(AC) | 255V | Application | N-PE protection of 220V/380V AC power system |
|---|---|---|---|
| Alarm indication | remote alarm available | Selling Units | Single item |
| Rated inrush current In(8/20 μs) | 20kA | Maximum inrush current Imax(8/20μs) | 40kA |
| 강조하다 | 255VAC Surge Protective Device,20kA Rated Inrush Current Surge Arrester,40kA Maximum Inrush Current Overvoltage Protector |
||
제품 설명

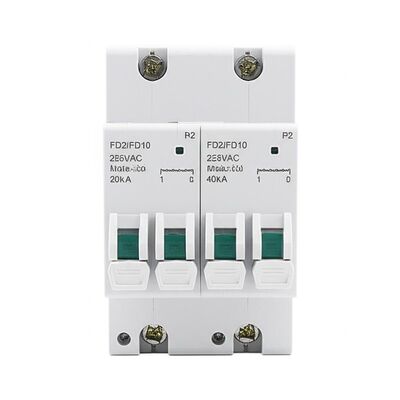

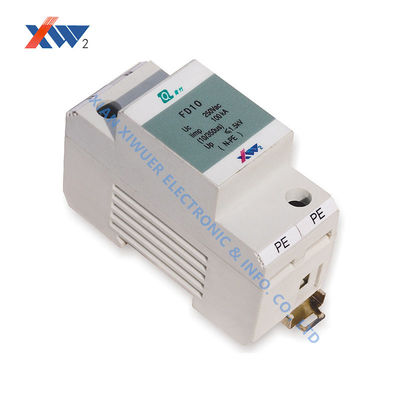

FD2/FD10 Power Surge Protective Device Single Phase Model 255VAC Surge Arrester
Product Description
FD2/FD10 power surge protective device single phase model 255VAC Surge Arrester provides reliable protection for electrical systems against power surges.
Key Features
- Large energy absorption ability with low limit voltage
- Fast response speed (≤25ns)
- Hot state module replacement capability (FD2 model)
Application
FD2 and FD10 overvoltage protectors are designed for N-PE protection in 220V/380V AC power systems.
Technical Parameters
| Model No. | FD2-255/20 | FD2-255/40 | FD2-255/60 | FD10-255/80 | FD10-255/100 |
|---|---|---|---|---|---|
| Maximum continuous operating voltage Uc(AC) | 255V | 250V | |||
| Rated inrush current In(8/20 μs) | 20kA | 40kA | 60kA | 80kA | 100kA |
| Maximum inrush current Imax(8/20μs) | 40kA | 60kA | 100kA | ||
| Lightning impulse current (10/350μs) | 80kA | 100kA | |||
| Protection level Usn | 1.5kV | 1.8kV | 1.8kV | 1.5kV | 1.5kV |
| Response time | 100ns | ||||
| Dimensions (mm) | 18*105*67 | 30*105*67 | 35*90*67 | 35*90*67 | 35*90*67 |
| Installation method | For use with 35mm standard rail | ||||
| Alarm indication | With remote arm available | With remote alarm available | |||
Company Overview
Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company established in 1976 with:
- Registered capital: CNY 101.465 million (USD 15.85 million)
- Total assets: CNY 315 million (USD 49.22 million)
- 460 employees with annual sales of CNY 280 million (USD 43.75 million)
- Four production bases covering 43,052 m² with construction area over 50,000 m²
- Highly qualified technical team including 8 master's degree holders and 80 senior engineers
Main Products
- Smart Embedded Epoxy Pole
- Integrated Instrument Transformer
- Capacitive Voltage Divider
- Rogowski Coil
- High Voltage Capacitor Rod
- High Voltage Film Capacitor
- High Voltage Resistor
- Primary and Secondary Integrated Intelligent assembly with voltage/current measurement, protection, temperature monitoring, and power supply functions
- Medium-High Voltage components/parts/assembly
- Surge Protective Device for Power Supply System
- Chips for lightning devices
- Zinc Oxide Varistor and Thermistor
Major Customers
ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric, etc.
Quality Certifications
The company maintains ISO 9001, ISO 14001, and ISO 45001 certifications with products meeting UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH standards.
