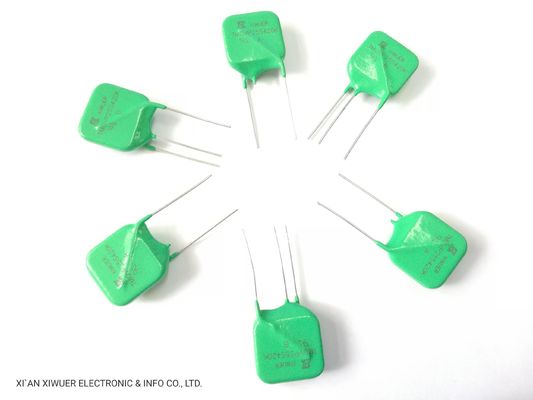

270V Maximum Voltage PTC NTC Thermistor for IC Card Holder Protection with ∮ 5.5*W5.2 Dimensions
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Application | Electronic, Electronic Products | Supplier Type | Original manufacturer, ODM |
|---|---|---|---|
| Trademark | XIWUER | Maximum Voltage (V) | 270 |
| Nominal resistance range at 25 ℃ Rn (Ω) | 300~500 | Dimensions(mm) | ∮ 5.5*W5.2 |
| 강조하다 | 270V Maximum Voltage Thermistor,IC Card Holder Protection Thermistor,∮ 5.5*W5.2 Dimensions PTC NTC Thermistor |
||
제품 설명
300-500 Ω PTC NTC Thermistor for IC Card Holder Protection MZ21 04BE
MZ21 04BE (300-500) Ω electronic meter IC card holder protection thermistor designed for prepaid electronic watt-hour meter applications.
IC Card Holder Protection PTC Thermistor
Protection Principle
The IC card holder protection thermistor prevents abnormal use of prepaid electronic watt-hour meter bayonets and protects against external static electricity, lightning strikes, strong electricity, accidental short circuits, and other attacks. It also enhances IC card reading/writing capability and extends the service life of both IC cards and card tables.
Technical Parameters
| Model | Max Voltage (V) | Rated Current (mA) | Switch Current (mA) | Resistance at 25℃ (Ω) | Switch Temp (℃) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| MZ21-05BD (30-60)Ω | 245 | 30 | 120 | 30-60 | 80±5 | 6.5 x 5.5 |
| MZ21-05BD500M | 245 | 30 | 115 | 50±20% | 80±5 | 6.5 x 5.5 |
| MZ21-05BD560M | 245 | 30 | 115 | 56±20% | 80±5 | 6.5 x 5.5 |
| MZ21-04BE (300-500)Ω | 270 | 10 | 25 | 300-500 | 70±5 | 5.5 x 5.2 |
IC Card Holder Protection PTC Module
Notes
- Pin pitch: 3.0±0.1mm for all connections
- Lead description: Pins 2,4,6,8,10 are input pins; 1,3,5,7,9 are output pins; pin 11 is GND terminal
- Custom specifications available based on customer requirements
PTC Module Technical Parameters
| Model | Regulation Range (V) | Resistance Range (Ω) | Switch Temp (℃) | Lead Spacing (mm) | Wire Diameter (mm) | Module Size (mm) |
|---|---|---|---|---|---|---|
| PTCMK4-05BD(30-60)/04BE(300-500) | 5.6±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 33.5 x 13.0 x 8.5 |
| PTCMK4-05BD(30-60)/04BE(300-500)-A | 6.8±15%/5.6V±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 33.5 x 13.0 x 8.5 |
| PTCMK5-05BD(30-60)/04BE(300-500) | 5.6±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 33.5 x 13.0 x 8.5 |
| PTCMK5-05BD(30-60)/04BE(300-500)-A | 6.8±15%/5.6V±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 33.5 x 13.0 x 8.5 |
| PTCMK6-05BD(30-60)/04BE(300-500) | 5.6±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 37.5 x 13.0 x 8.5 |
| PTCMK6-05BD(30-60)/04BE(300-500)-A | 6.8±15%/5.6V±5% | 30-60 / 300-500 | 80 / 70 | 3.0±0.1 | 0.6±0.5 | 37.5 x 13.0 x 8.5 |
Precautions
- R: Resistance of thermistor between non-adjacent pins (3-4, 5-6, 7-8, 9-10)
- Tc: Switching temperature of thermistor between non-adjacent pins
- Custom specifications available based on customer requirements
