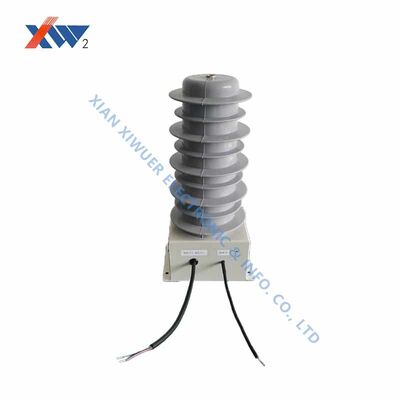

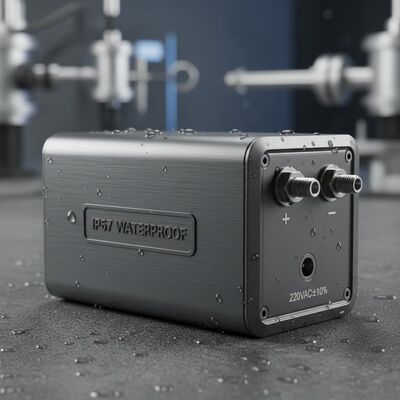

High Voltage Capacitor Power Supply with 220VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting
제품 상세 정보
| 강조하다 | 220VAC±10% Output Voltage High Voltage Capacitor Power Supply,IP67 Waterproof Level HV Ceramic Capacitor,Insulating Resin Potting Power Supply Device |
||
|---|---|---|---|
제품 설명
High Voltage Capacitor Power Supply - LEDZW-12
Product Overview
The power supply is a power supply device that directly connects the high voltage end to the device and obtains electrical energy from the output end. It is mainly composed of a capacitor unit and an electromagnetic unit, wherein the electromagnetic unit includes an intermediate transformer and a harmonic elimination circuit.
Electrical Performance Index
| Serial Number | Categories | Unit | Index |
|---|---|---|---|
| 1 | Output Voltage | V | 220VAC±10% |
| 2 | Output Power | W | 10 |
| 3 | Working Temperature | ºC | -40~+70 |
| 4 | Capacitor Dimension | mm | Φ129*330 |
| 5 | Main Size | mm | 186*135*75 |
| 6 | Heat Dissipation Structure | - | Insulating Resin Potting |
| 7 | Package Structure | - | Plastic & Metal Shell |
| 8 | Waterproof Level | - | IP67 |
Technical Principle
The high-voltage capacitor energy-harvesting device consists of a capacitor module and a conversion module. It obtains electrical energy through capacitor voltage division, and the conversion module steps down and stabilizes the voltage for output. For AC output, the conversion module includes a transformer, voltage stabilization, and protection units; for DC output, it also includes rectification and filtering units, and different rectification circuits can be selected according to requirements.
