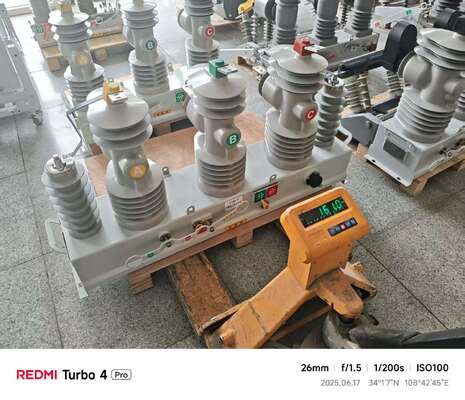

High Voltage Capacitor Power Supply with 27VAC/24VAC±10% Output Voltage, IP67 Waterproof Level, and Insulating Resin Potting for Reclosers
제품 상세 정보
| 강조하다 | 220VAC±10% Output Voltage High Voltage Capacitor Power Supply,IP67 Waterproof Level Power Supply Device,Insulating Resin Potting Capacitive Voltage Extraction Device |
||
|---|---|---|---|
제품 설명
High Voltage Capacitor Power Supply —— A new generation of power supplies specifically designed for reclosers
Product Overview

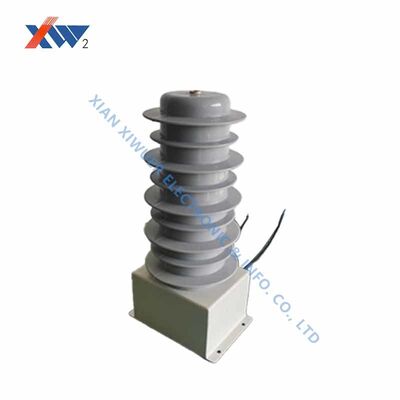

High Voltage Capacitor Power Supply - LEDZW-12
Electrical Performance Specifications
| Serial Number | Categories | Unit | Index |
|---|---|---|---|
| 1 | Output Voltage | V | 220VAC±10% |
| 2 | Output Power | W | 10 |
| 3 | Working Temperature | ºC | -40~+70 |
| 4 | Capacitor Dimension | mm | Φ129*330 |
| 5 | Main Size | mm | 186*135*75 |
| 6 | Heat Dissipation Structure | - | Insulating Resin Potting |
| 7 | Package Structure | - | Plastic & Metal Shell |
| 8 | Waterproof Level | - | IP67 |
Technical Diagram
High Voltage Capacitor Power Supply block diagram and terminal connection schematic
Advantages and Innovations
- High-power DC output is leading in China
- Adopts high-voltage capacitor series transformer energy harvesting, with overvoltage protection and amplitude limiting circuits; capacitors can optimize circuit performance
- Compared with similar technologies, it has large energy-harvesting power, flexible combination, wide voltage and power coverage, solves the problem of traditional PT ferroresonance, and reaches the leading level in China
- Features high performance and safety, easy installation, stability and reliability, effective isolation, and low power consumption
