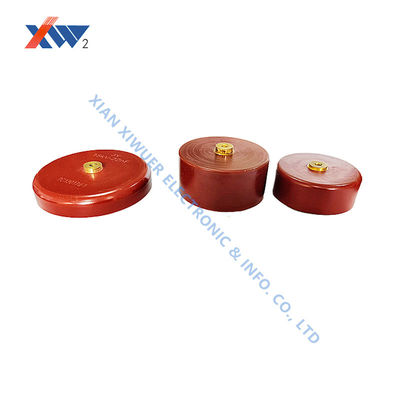

High Frequency 12KV 190pF Ceramic Capacitor High Voltage Doorknob Capacitor
제품 상세 정보
| 작동 온도 | -30' Ｃ ~ 85' Ｃ | 공칭 작동 전압 | 12KV |
|---|---|---|---|
| 용량 허용 오차 | 190pF | 내전압 | 안에 (오일에서) 5시 Ｈ Ｚ 4시 2분 kV ·1 Ｍ |
| 용인 | ±20pF | 유전 손실 | 1 Ｖ, 1 킬로 헤르츠, 2 0 ~ 2 5 C < 0.4 % |
제품 설명
High Frequency High Power Ceramic Capacitor 12KV-190pF High Voltage Doorknob Capacitors
High Frequency High Power Ceramic Capacitor 12KV-190pF High Voltage Doorknob Capacitors
Capacitors are ceramic, fixed capacitors, and vacuum capacitors. The rating of 2200 pF capacitance at 7 KV peak voltage. These are brand-new units in factory boxes, many of which can be used for mass production.
Features
- High insulation resistance
- Epoxy coating
- Thread terminal installation
- Ceramic single-layer capacitor
- Material classification: Used to define compliance
Application
This capacitor powers electronics like a TV, computer, and home appliances using a wave-filtering return circuit.
Technical Parameters
| Part No | Dielectric | Capacity | Rated voltage | Rated power | Dielectric loss | D/H A(mm) | D/H B(mm) | Screw (mm) |
|---|---|---|---|---|---|---|---|---|
| 202RF | 280 | 2000PF | 50KV | 280KVA | 8% | 82*22 | 87*22 | M10 |
| 252RF | 280 | 2500PF | 40KV | 280KVA | 8% | 95*22 | 112*22 | M10 |
| 302RF | 280 | 3000PF | 30KV | 280KVA | 8% | 104*22 | 115*22 | M10 |
| 402RF | 320 | 4000PF | 30KV | 280KVA | 0.5% | 104*22 | 115*22 | M10 |
| 502RF | 320 | 5000PF | 30KV | 280KVA | 0.5% | 104*22 | 115*22 | M10 |
| 602RF | 320 | 6000PF | 30KV | 260KVA | 0.5% | 115*22 | 125*22 | M10 |
| 802RF | 850 | 8000PF | 20KV | 260KVA | 1% | 95*22 | 115*22 | M10 |
| 103RF | 850 | 10000PF | 15KV | 260KVA | 1% | 104*22 | 115*22 | M10 |
| 203RF | 850 | 20000PF | 10KV | 260KVA | 1% | 120*22 | 130*22 | M10 |
Company Overview
Xian Xiwuer Electronic and Info. Co., Ltd is a wholly state-owned company with a registered capital of CNY 101.465 million (exchanged to USD15.85 million), owning total assets of CNY315 million (traded to USD 49.22 million). It was established in 1976. Currently, it has about 460 employees, with an annual sales income of CN280 million (exchanged to USD43.75 million). The company has four production and business bases covering an area of 43052 square meters, and a construction area of more than 50000 square meters.
The company has 8 persons with master's degrees, more than 80 engineers with senior technical titles 12 technicians who have been awarded Experts with Outstanding Contributions by the Xian municipal government, and 1 expert who has been enjoying a special allowance from the State Council.
Main Products
- Smart Embedded Epoxy Pole
- Integrated Instrument Transformer
- Capacitive Voltage Divider
- Rogowski Coil
- High Voltage Capacitor Rod
- High Voltage Film Capacitor
- High Voltage Resistor
- Primary and Secondary Integrated Intelligent assembly and components with the function of voltage measurement, current measurement, protection, temperature monitoring, and power supply
- Medium-High Voltage components/parts/ assembly
- Surge Protective Device for Power Supply System
- Chips for lightening devices
- Zinc Oxide Varistor; Thermistor
Major Customers: ABB, Schneider, GE, ZTE, XD Electric, XJ Electric, PingGao Electric and etc.
The company has the provincial Technical R&D Center. The company has developing and manufacturing experiences of the key products HV Ceramic Capacitor, SPD, Varistor, Thermistor and for nearly 20 years. There have been 32 patented technology, 4 invention patents, and 4 national key new products. The company is in the leading position in the same industry.
The company has grown very fast with a unique management system which is the fundamental guarantee to the continuous development of the enterprise under the state-owned system. In Northwest China, the company is the first to implement ISO 9001 standards and the first to promote the use of ERP management systems, having achieved ISO9001, ISO14001, and ISO45001 approval, thus standardizing and improving the management level of the company.
Through continuous technological innovation, product R&D, and quality improvement the main technical performance and reliability of the products are at the internationally advanced level as the same level with Panasonic and Siemens. The products have got UL, VDE, TUV, CAS, CE, CQC, RoHS, and REACH Certification.
The company has advanced production equipment among which the key production equipment and modern assembly lines are imported from Japan, the U.S.A, Germany, Korea, and Belgium including 26m large sintering tunnel furnaces8 automatic assembly lines, the largest energy impulse current generator and a series of special test equipment and environmental test equipment. In the same industry in China, the company has the largest production capacity, the highest degree of automation with the most complete testing methods.
The company has two routine test laboratories with the most advanced lightning testing equipment and environmental testing equipment which comply with national standards for laboratory construction. They are the significant laboratories supported by Shaanxi Province with professional testing technicians undertaking part of the supervision and inspection of electronic products in Shaanxi Province at the same time.
We believe we are able to supply satisfied goods and services to customers at home and abroad with the most reasonable price and the shortest delivery time. on the bases of our excellent quality assurance capacity, technical development capacity, and rich manufacturing experiences.
